Old 02-12-2004, 10:36 PM   #31
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500
Then we used a fancy mortise jig on the tablesaw to cut a lip into the inside top of the feet. Obviously, you don't need all the hardware to do it, but if you've got it, flaunt it.
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]
Happy Monkey is offline   Reply With Quote
Old 02-12-2004, 10:38 PM   #32
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500

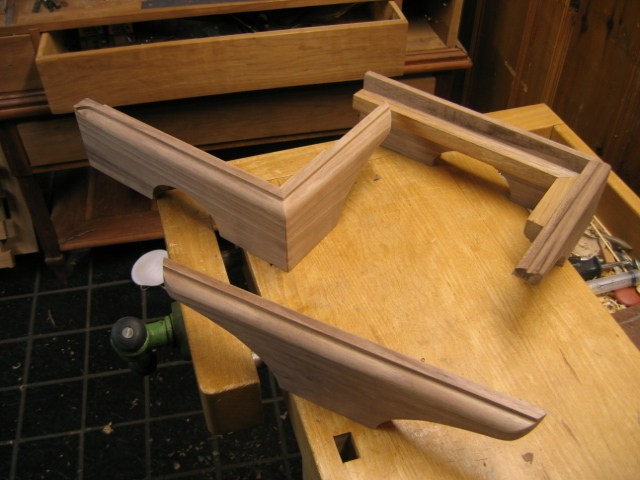

And here's the first rough cut of the feet.
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]
Happy Monkey is offline   Reply With Quote
Old 02-16-2004, 08:34 PM   #33
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500
I didn't get to do anything over the weekend, but my dad glued up the feet, smoothed over the ends, and glued in some blocks on the inner surfaces of the corners.
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]
Happy Monkey is offline   Reply With Quote
Old 02-22-2004, 08:46 AM   #34
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500
Next, we prepared the plywood backing. It is 1/8 inch birch plywood, so it is quite flimsy.

First I measured the same distance from one edge at intervals, using some scrap wood to make sure the tape measure didn't go too diagonally, then I used a straightedge to connect the dots.
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]
Happy Monkey is offline   Reply With Quote
Old 02-22-2004, 08:47 AM   #35
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500

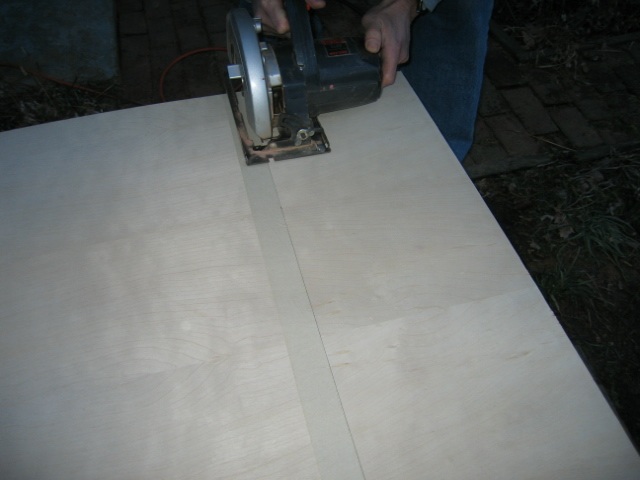

Then I put masking tape along the line, to minimize splintering, and my dad cut it with a circular saw.
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]
Happy Monkey is offline   Reply With Quote
Old 02-22-2004, 08:49 AM   #36
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500
We then shaved it down with a (very sharp) plane, until it fit in the groove on the back of the bookshelf.
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]
Happy Monkey is offline   Reply With Quote
Old 02-22-2004, 08:51 AM   #37
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500
We ground notches in the edge with a dremmel, to allow for the bolts which will hold the backing in.
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]
Happy Monkey is offline   Reply With Quote
Old 02-22-2004, 08:52 AM   #38
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500
And here's what it looks like with those screws in...
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]
Happy Monkey is offline   Reply With Quote
Old 02-22-2004, 08:53 AM   #39
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500
...And from the front. We're getting close to finished.
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]
Happy Monkey is offline   Reply With Quote
Old 02-22-2004, 09:44 PM   #40
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500
For the molding around the top, we routed one edge of a board, cut it off with a tablesaw, then repeated the process.
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]
Happy Monkey is offline   Reply With Quote
Old 02-22-2004, 09:47 PM   #41
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500
We also ripped off two slices from some of the spare wood from the shelves.
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]
Happy Monkey is offline   Reply With Quote
Old 02-22-2004, 09:49 PM   #42
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500
We used the chopsaw to make a angle joint in the molding, for the corner.
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]
Happy Monkey is offline   Reply With Quote
Old 02-22-2004, 09:54 PM   #43
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500
For perfect placement, we wanted to place the molding while the frame was together. The masking tape is to avoid unwanted gluing.
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]
Happy Monkey is offline   Reply With Quote
Old 02-22-2004, 09:56 PM   #44
Happy Monkey
I think this line's mostly filler.

Join Date: Jan 2003
Location: DC
Posts: 13,500
And then we glued it. Once the glue got a bit solid, the excess glue was scraped off with a chisel.
whee! post 500!
Attached Images

__________________
_________________
|...............| We live in the nick of times.
| Len 17, Wid 3 |
|_______________| [pics]

Last edited by Happy Monkey; 02-23-2004 at 09:55 AM.
Happy Monkey is offline   Reply With Quote
Old 02-22-2004, 10:48 PM   #45
lumberjim
I can hear my ears

Join Date: Oct 2003
Posts: 25,371
man, monkey. you guys don;t fuck around, do you? very precise work. I'm very impressed. Dad's got a pretty mean tool set, too, huh?

some day, baby, some day.

tell your pop he's my hero, and keep the pics coming!
